SQL and Data Modeling

Imagine a support agent at Acme Co. (merchant ID m01) receives a live chat: "I ordered the blue widget on Tuesday and the refund never arrived. Order #4821."

The agent needs the merchant's exact refund policy, the specific ticket history for that customer, the order status from the transactional system, and only the documents and tickets that this agent (or the end customer) is allowed to read. A naive LIKE '%refund%' scan across every row in a 4-million-ticket corpus takes 800 ms and returns garbage. The LLM that will draft the reply needs the right three paragraphs in the right order, with citations it can trust, in under 120 ms.

That is the job of a carefully designed SQL schema with vector search.

---

Modern AI applications are hybrid systems. The merchant's orders, payments, and user accounts must remain strongly consistent (ACID). The retrieval layer that feeds the LLM (RAG) must be fast, filterable by tenant, and permission-aware. The data model has to satisfy both workloads at the same time.^[1]

This chapter teaches you exactly how to do it with Postgres + pgvector, the combination that powers the majority of production RAG systems in 2026.

Where this chapter sits

One running example: Acme Merchant support RAG

We will use a single merchant (m01 = Acme) with two source documents and three historical support tickets. All numbers are tiny so you can compute everything by hand before we scale to production.

Source documents (the knowledge base the merchant uploads)

Support tickets (the conversational history)

Two agents:

• Agent Alice (u1) works for Acme and can see everything.
• Agent Bob (u3) is a contractor who can only see refund-related tickets (ACL restricted).

We will build a schema that lets Alice ask "show me recent refund questions" and get three perfectly cited chunks in < 15 ms, while Bob asking the same question only sees the chunks he is allowed to read.

Relational modeling for the merchant side (the normalized core)

Start with the tables that must be correct for billing, compliance, and order integrity.

sql
1CREATE TABLE merchants (
2    id          TEXT PRIMARY KEY,
3    name        TEXT NOT NULL,
4    plan        TEXT NOT NULL CHECK (plan IN ('starter','pro','enterprise')),
5    created_at  TIMESTAMPTZ DEFAULT now()
6);
7
8CREATE TABLE support_documents (
9    id          TEXT PRIMARY KEY,
10    merchant_id TEXT REFERENCES merchants(id) ON DELETE CASCADE,
11    title       TEXT NOT NULL,
12    full_text   TEXT NOT NULL,
13    updated_at  TIMESTAMPTZ DEFAULT now()
14);
15
16CREATE TABLE tickets (
17    id            TEXT PRIMARY KEY,
18    merchant_id   TEXT REFERENCES merchants(id),
19    customer_id   TEXT NOT NULL,
20    text          TEXT NOT NULL,
21    status        TEXT NOT NULL,
22    created_at    TIMESTAMPTZ DEFAULT now()
23);

This is classic third-normal form. If Acme changes its name, one UPDATE fixes it for every ticket and document. If a merchant is deleted, its tickets and documents disappear (or are archived) automatically. The transactional side of the business is happy.

Why we still need a vector table: the RAG side

An LLM cannot read a 12-page refund policy in one shot and the policy is only useful when the right paragraph is retrieved. We therefore split documents into chunks (typically 200–800 tokens) and store an embedding for each chunk.

We could have put the embedding column on support_documents, but then we would be forced to re-embed the entire document every time any sentence changes, and we would lose the ability to cite the exact paragraph that answered the question.

Hence the document_chunks table.

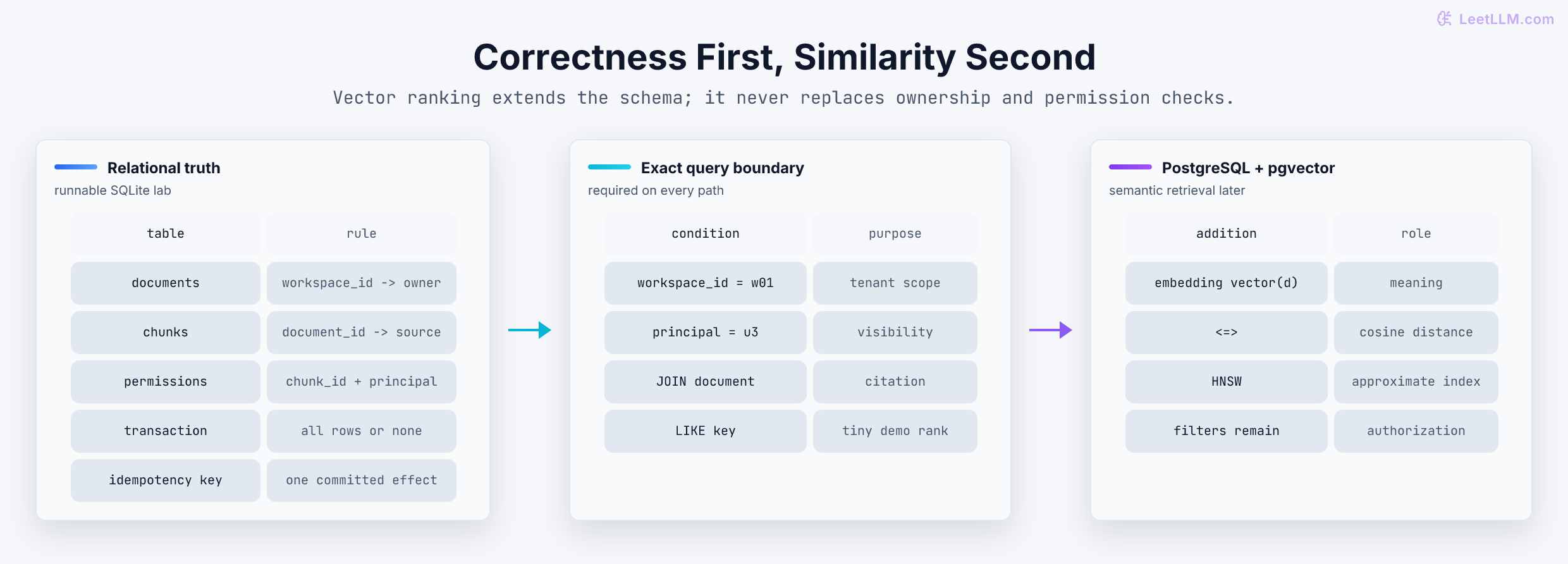

The hybrid RAG schema (the one you will actually ship)

sql
1CREATE EXTENSION IF NOT EXISTS vector;   -- pgvector
2
3CREATE TABLE document_chunks (
4    id            BIGSERIAL PRIMARY KEY,
5    document_id   TEXT REFERENCES support_documents(id) ON DELETE CASCADE,
6    merchant_id   TEXT NOT NULL,                    -- denormalized for fast filter
7    chunk_index   INT  NOT NULL,
8    chunk_text    TEXT NOT NULL,
9    embedding     VECTOR(1536) NOT NULL,            -- OpenAI text-embedding-3-small size
10    metadata      JSONB  NOT NULL DEFAULT '{}',     -- { "category": "refund", "source": "policy", "last_embedded": "..." }
11    acl           TEXT[] NOT NULL DEFAULT '{}',     -- user IDs or role strings that may read this chunk
12    created_at    TIMESTAMPTZ DEFAULT now()
13);
14
15-- Critical indexes (we explain each in the next section)
16CREATE INDEX idx_chunks_merchant ON document_chunks(merchant_id);
17CREATE INDEX idx_chunks_acl_gin ON document_chunks USING GIN (acl);
18
19-- HNSW is a strong default for high-recall, low-latency vector search
20CREATE INDEX idx_chunks_embedding ON document_chunks
21    USING hnsw (embedding vector_cosine_ops);

Key modeling decisions:

• merchant_id is duplicated (denormalized) into the chunks table. A tenant-scoped vector query usually wants "only this tenant's data". A join at query time can be much slower and may prevent the planner from using the vector index well.

• metadata is JSONB. You can add category, language, version, page_number, or any future field without ALTER TABLE.

• acl is a text array. Postgres GIN index on arrays gives you fast acl @> ARRAY['u1'] checks.

• embedding is the real vector(1536) type from pgvector. You get the distance operators for free.

This single table now serves both the RAG retrieval path and the permission system.

Normalization vs denormalization tradeoffs for AI workloads

Rule of thumb for serious RAG systems:

• Keep the source of truth normalized (documents, tickets, merchants).
• Denormalize the hot retrieval columns (merchant_id, acl, category, last_updated) into the chunks table.
• Accept the duplication and protect it with a transactional loader or a materialized view + trigger.

Indexing for fast retrieval

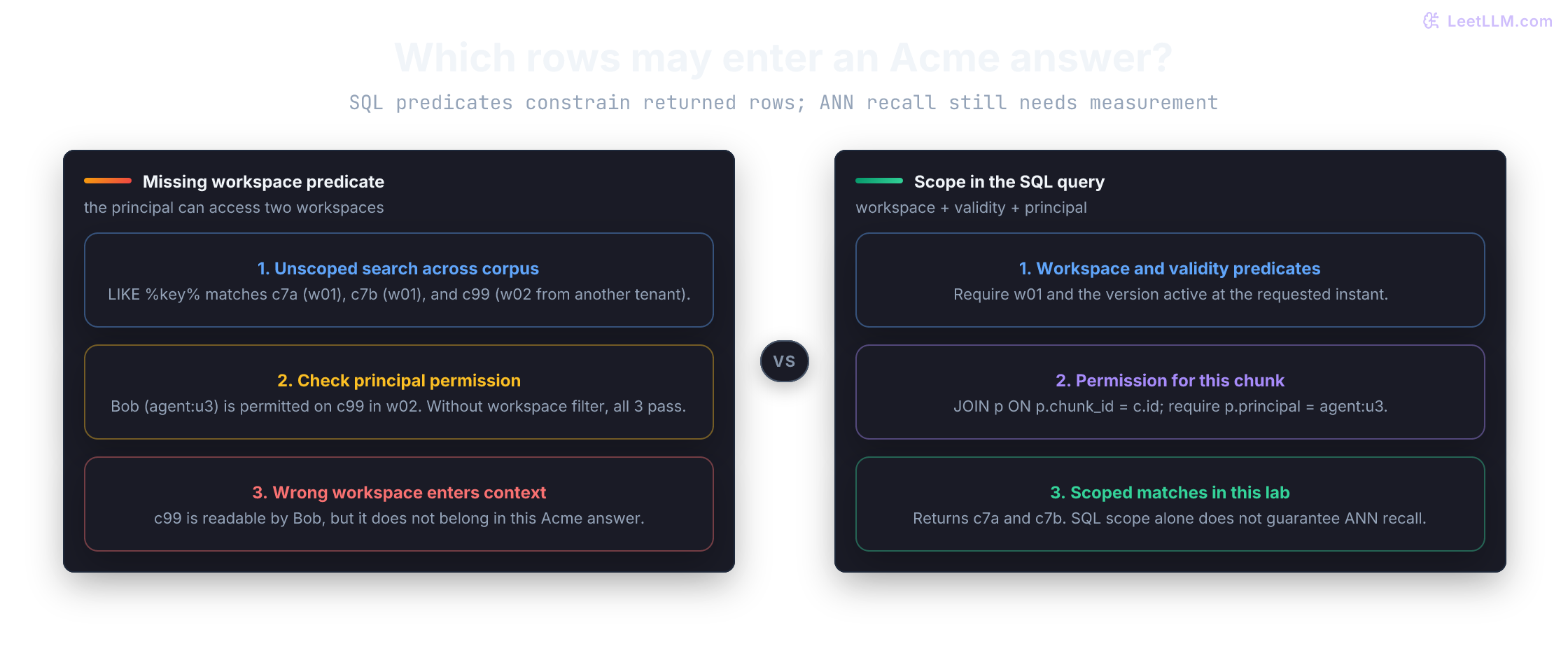

A vector index without the surrounding filters is useless in multi-tenant systems.

The combination that works:

1. B-tree (or BRIN) on merchant_id - filters 99 % of the corpus in a single merchant before the vector index even runs.
2. GIN on acl - fast array containment.
3. HNSW on the embedding (cosine) - approximate nearest neighbors with > 0.95 recall at 5–15 ms.

sql
1-- You can also combine them in one composite index in newer Postgres + pgvector
2-- but separate indexes + bitmap AND in the planner is often clearer.

Never create only the vector index. The planner will fall back to a sequential scan on any query that also filters by merchant_id or acl.

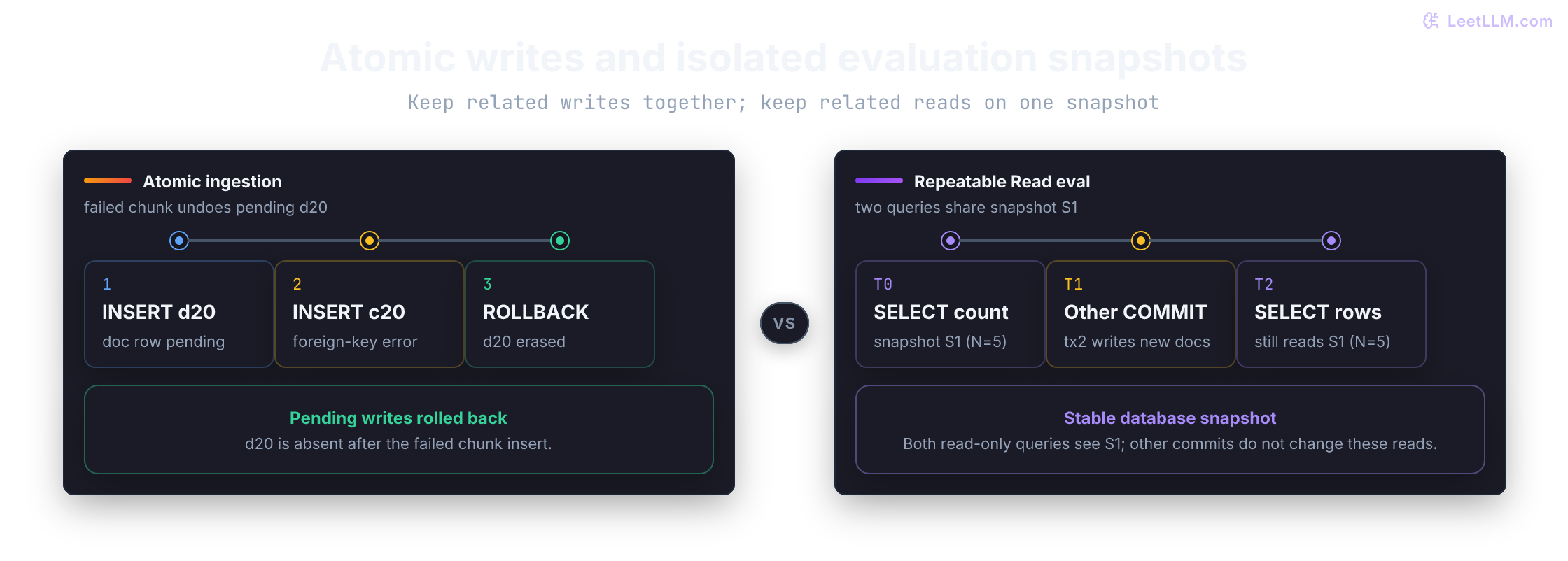

ACID versus eventual consistency for embeddings

When a new refund policy document arrives:

• The loader must insert the document row, split it into chunks, generate embeddings, and insert the chunk rows.
• If the embedding service is down or returns garbage, the entire batch must roll back. Otherwise the support agent will cite a policy paragraph that was never committed.

sql
1BEGIN;
2INSERT INTO support_documents ...;
3INSERT INTO document_chunks (document_id, merchant_id, chunk_index, chunk_text, embedding, metadata, acl)
4VALUES (...), (...), ...;
5COMMIT;

Generate embeddings before opening the transaction if the external call is slow or flaky, then write the document row and chunk rows in one database transaction. Postgres + pgvector then guarantee that either the whole policy (with its vectors) is visible or none of it is.

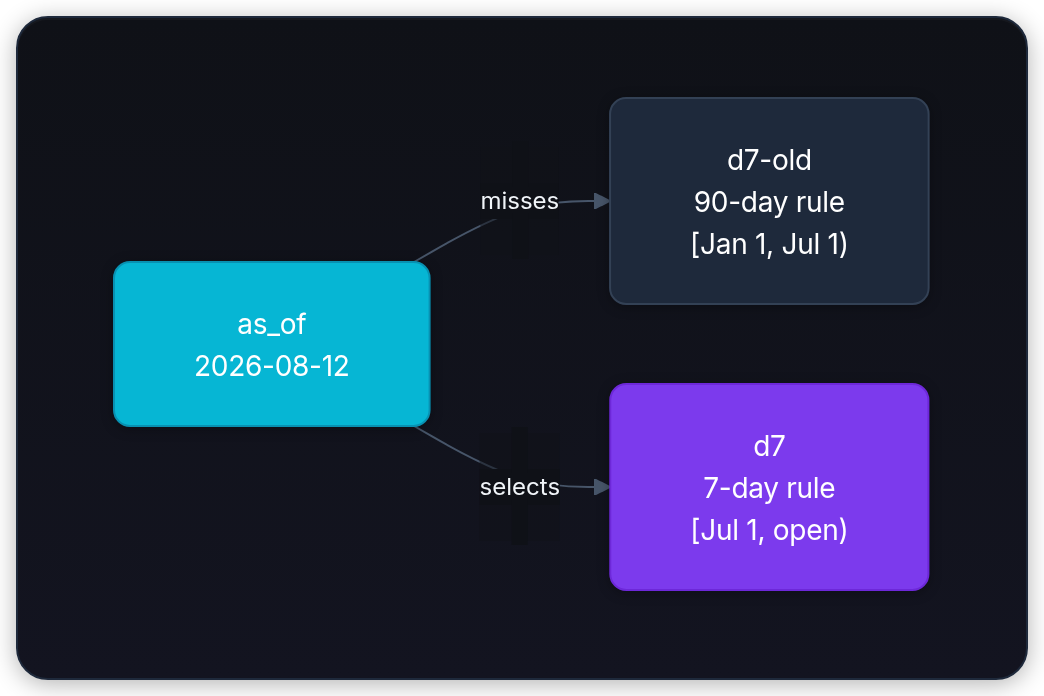

For the "re-embed everything because we switched to a better embedding model" job you can relax:

• Add a corpus_version column.
• The background worker writes new chunks with corpus_version = 2.
• A nightly job deletes the old version rows after the new ones are verified.
• Retrieval always adds AND corpus_version = (SELECT max FROM ...) or uses a view.

This is the classic "strong consistency on the write path, eventual on the refresh path" pattern.

Querying from Python with psycopg2

Install the official pgvector helper (it registers the vector type correctly):

bash
1pip install "psycopg2-binary>=2.9" pgvector

Python loader sketch (the exact script you will adapt in your repo):

python
1import psycopg2
2from pgvector.psycopg2 import register_vector
3import numpy as np
4import os
5
6conn = psycopg2.connect(
7    host="localhost", dbname="acme_rag", user="rag_app", password=os.environ["DB_PASSWORD"]
8)
9register_vector(conn)
10
11def upsert_chunks(chunks: list[dict]):
12    """chunks = [{"doc_id": "d7", "merchant_id": "m01", "chunk_index": 0,
13                 "text": "...", "embedding": np.array([...], dtype=np.float32),
14                 "metadata": {"category": "refund"}, "acl": ["u1", "u3"]}, ...]"""
15    with conn.cursor() as cur:
16        cur.execute("BEGIN")
17        for c in chunks:
18            cur.execute("""
19                INSERT INTO document_chunks
20                    (document_id, merchant_id, chunk_index, chunk_text, embedding, metadata, acl)
21                VALUES (%s, %s, %s, %s, %s, %s, %s)
22                ON CONFLICT (document_id, chunk_index) DO UPDATE
23                    SET embedding = EXCLUDED.embedding,
24                        metadata  = EXCLUDED.metadata,
25                        acl       = EXCLUDED.acl
26            """, (c["doc_id"], c["merchant_id"], c["chunk_index"], c["text"],
27                  c["embedding"], c["metadata"], c["acl"]))
28        conn.commit()
29
30def retrieve(merchant_id: str, user_acls: list[str], query_vec: np.ndarray, k: int = 5):
31    with conn.cursor() as cur:
32        cur.execute("""
33            SELECT chunk_text,
34                   metadata,
35                   document_id,
36                   chunk_index,
37                   1 - (embedding <=> %s) AS cosine_sim
38            FROM document_chunks
39            WHERE merchant_id = %s
40              AND acl && %s          -- overlap: at least one ACL matches
41            ORDER BY embedding <=> %s
42            LIMIT %s
43        """, (query_vec, merchant_id, user_acls, query_vec, k))
44        return cur.fetchall()
45
46print("document_chunks loader and retrieval helpers are ready")

The <=> operator is cosine distance (1 − cosine similarity). The && operator on arrays is the fast overlap check that uses the GIN index.

The query returns the exact text, the metadata you stored, and the source document + chunk index so the LLM can emit citations like [Policy §2, Ticket t1].

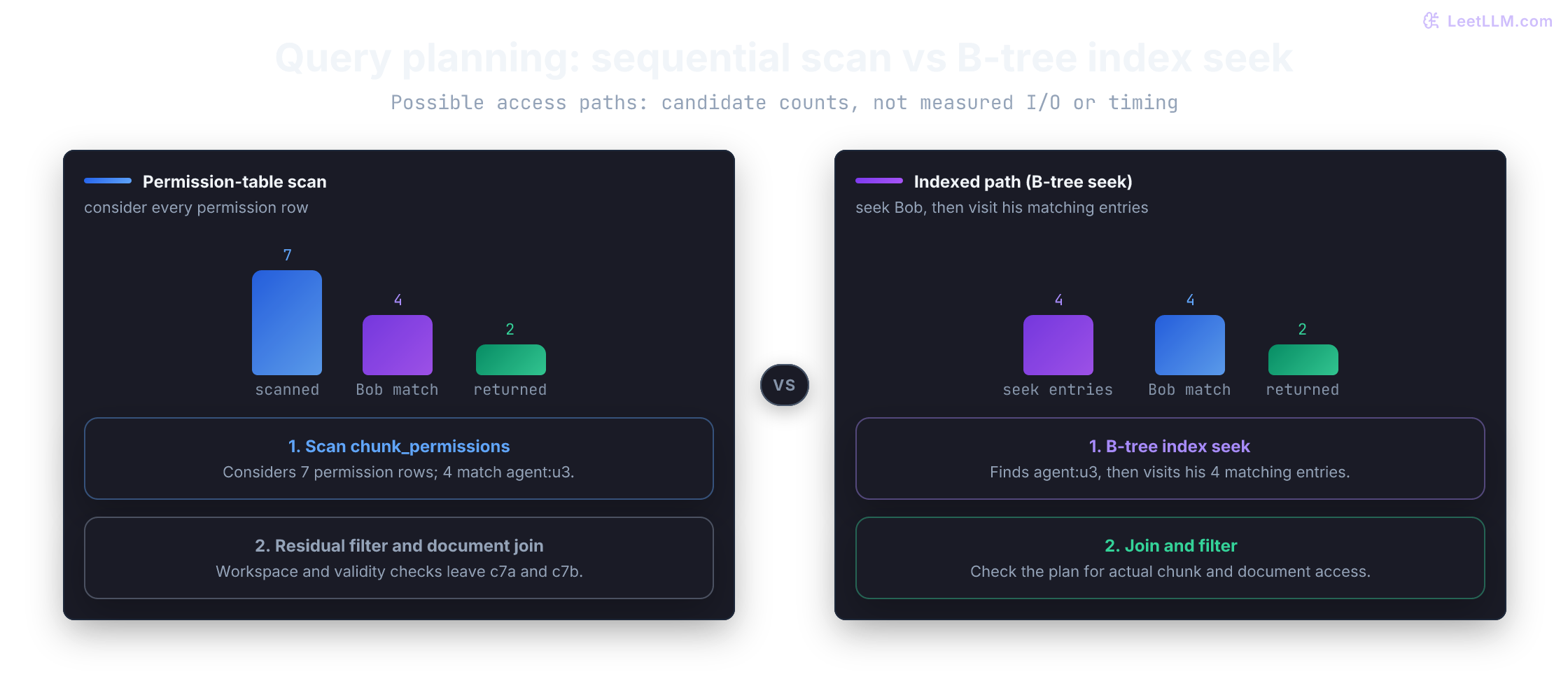

Reading the query plan

Run EXPLAIN (ANALYZE, BUFFERS, FORMAT TEXT) on your retrieve query. You should see:

text
1Limit  (cost=12.34..45.67 rows=5 width=...)
2  ->  Index Scan using idx_chunks_embedding on document_chunks
3        Index Cond: (embedding <=> $1)
4        Filter: (merchant_id = $2) AND (acl && $3)
5        Rows Removed by Filter: 124

If you see Seq Scan instead of Index Scan, you are missing one of the three indexes or the planner statistics are stale (ANALYZE document_chunks;).

A good plan uses the btree/GIN filter first to reduce the candidate set to a few thousand rows, then the HNSW index only on those candidates.

Visual anchor

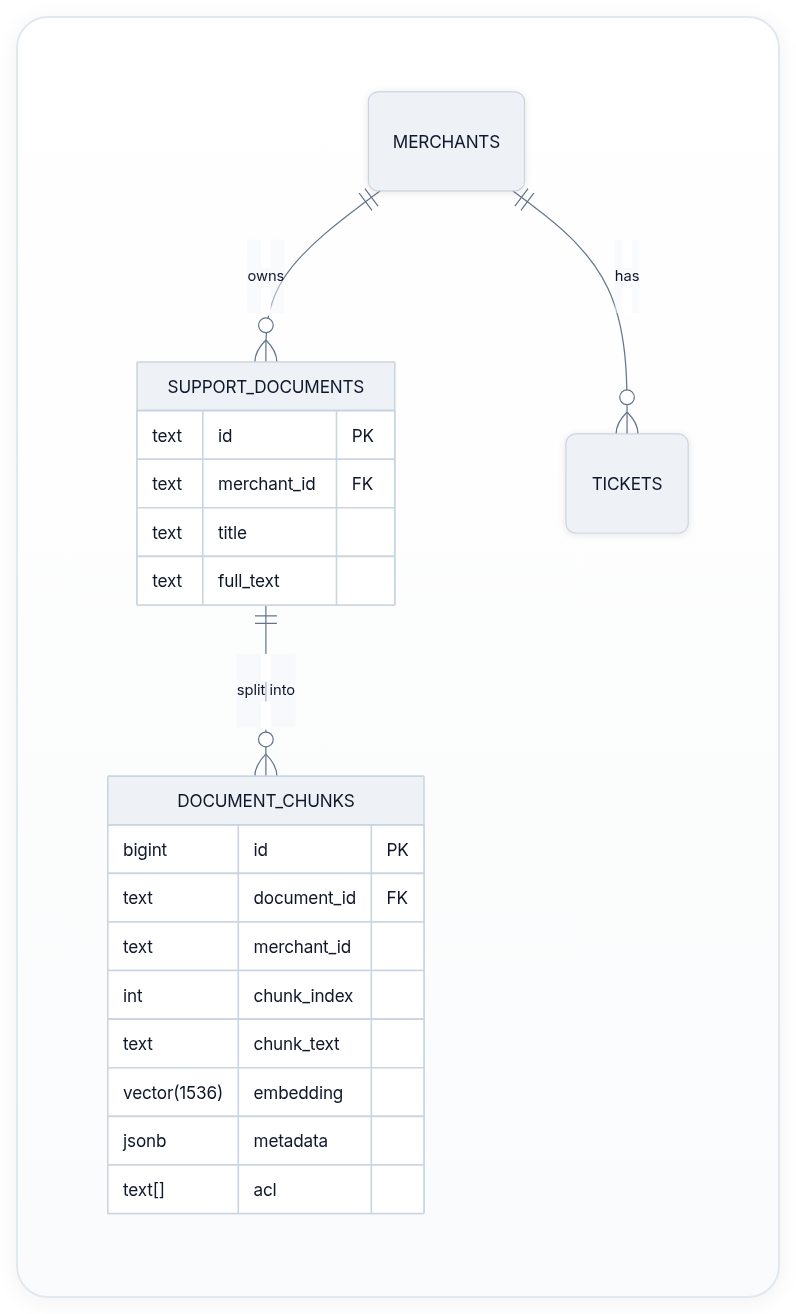

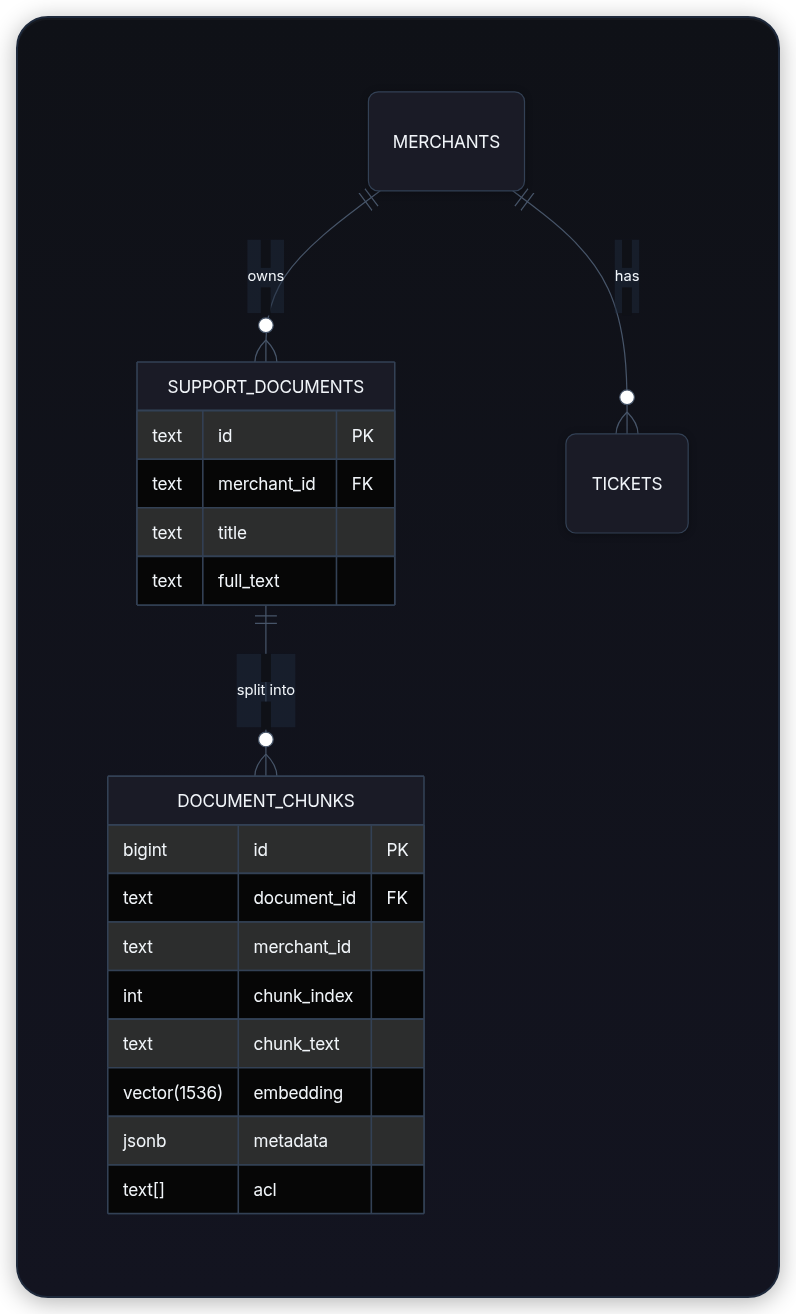

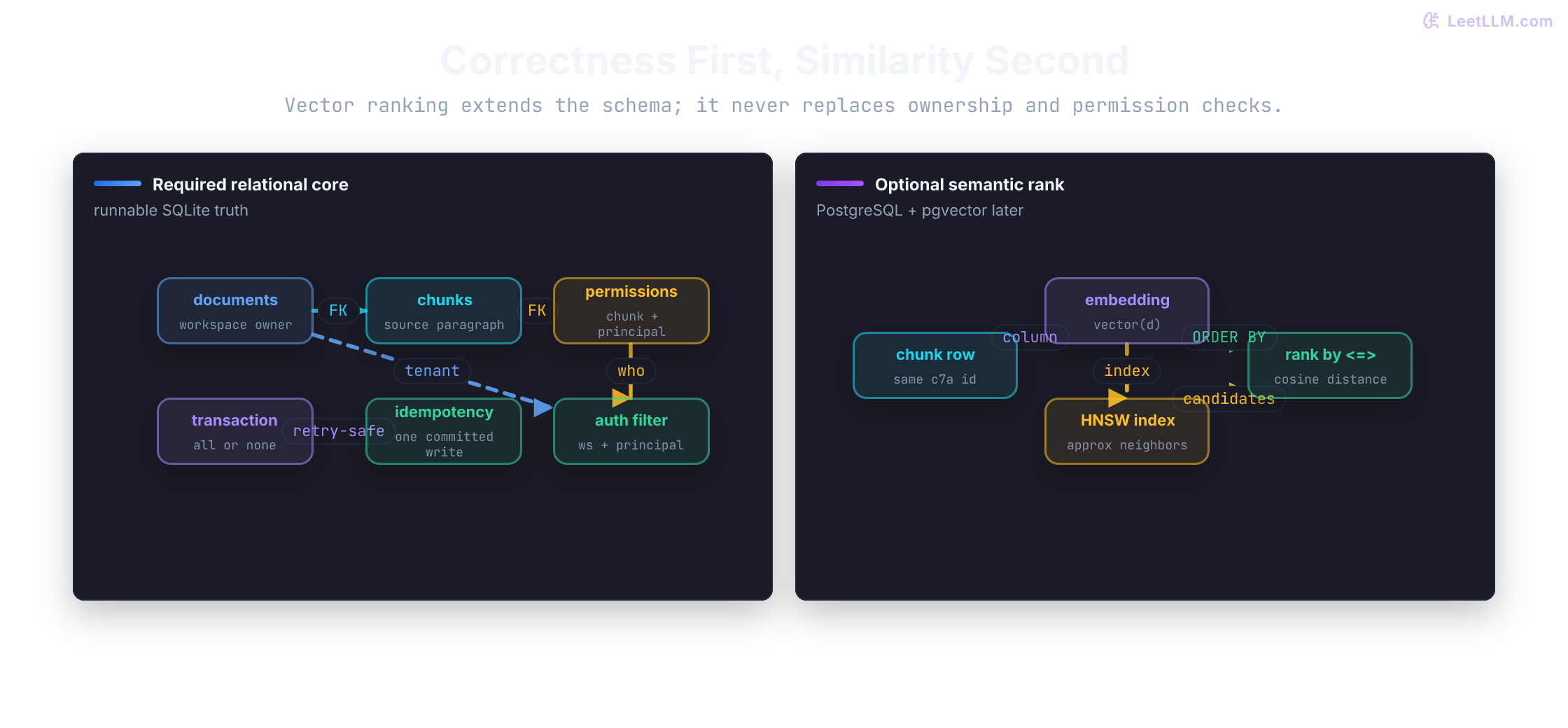

Schema diagram (Mermaid)

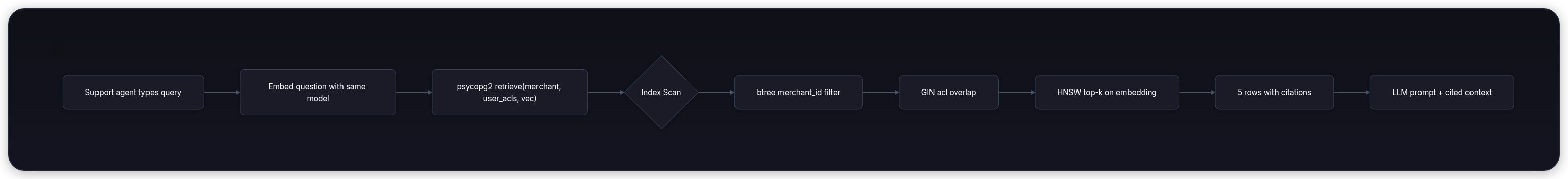

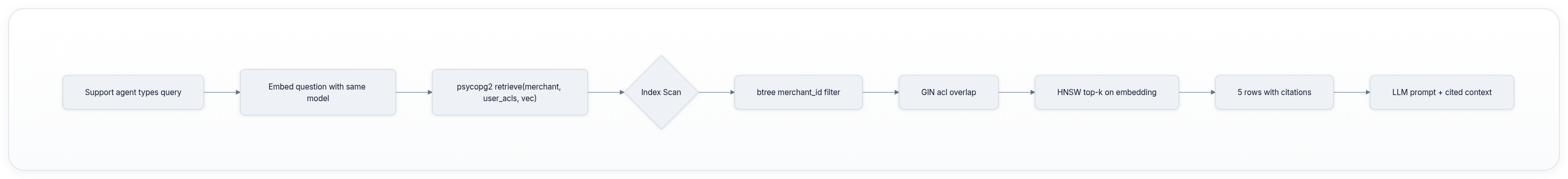

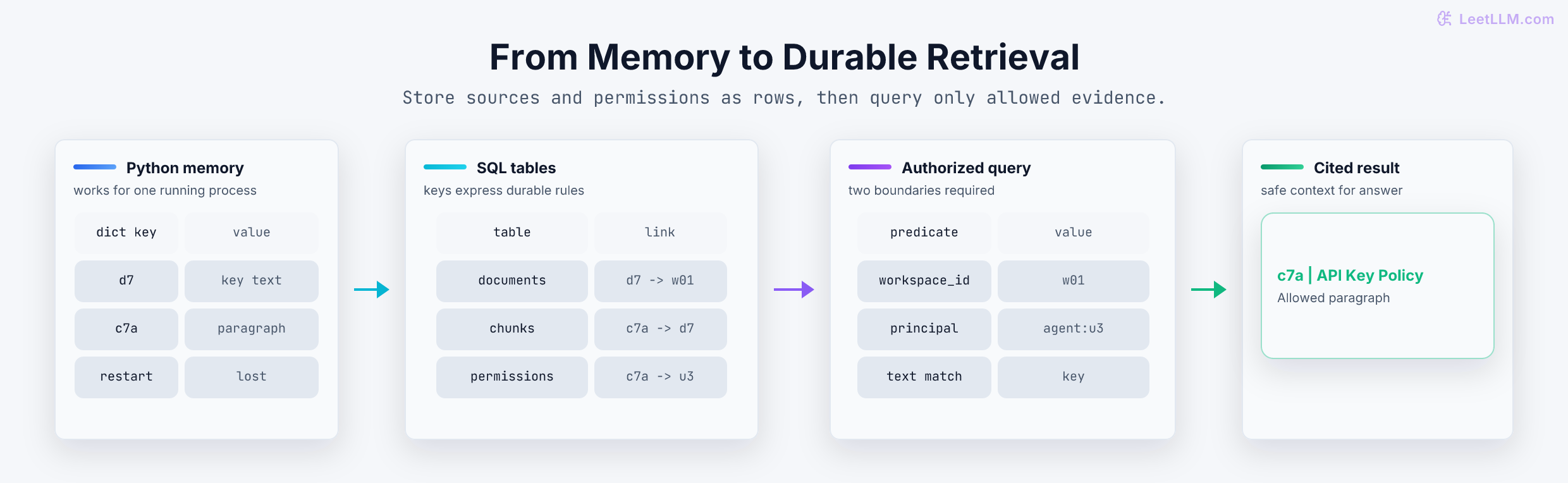

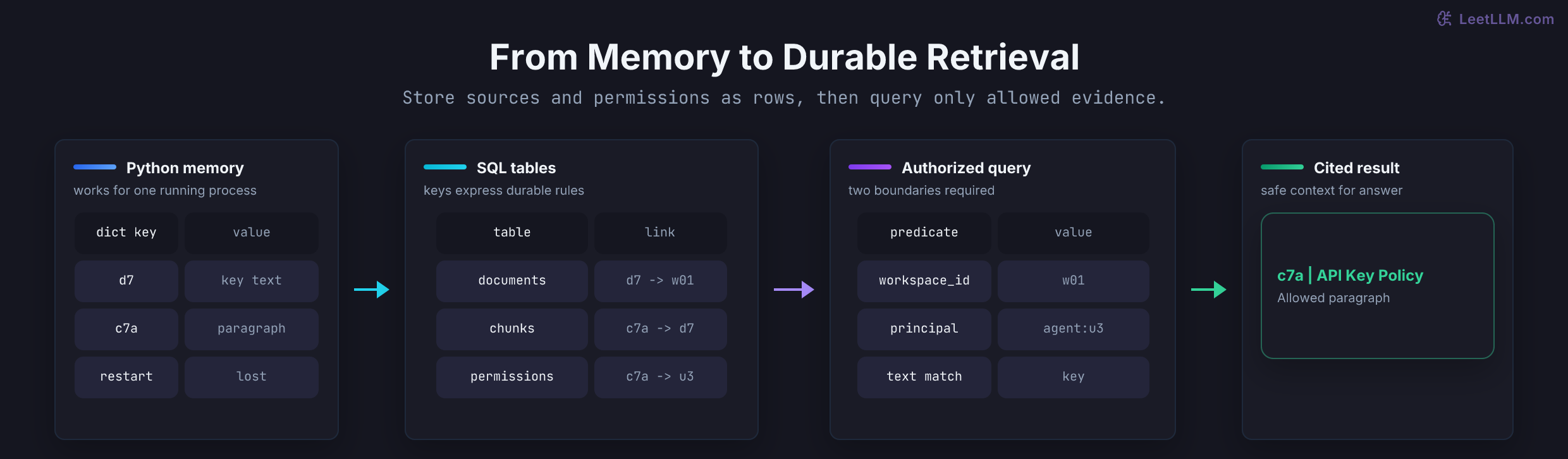

Query execution flow (Mermaid)

Build it yourself (the exercise that makes it stick)

In your local repo (the same one you created in the Git, Docker, and Python foundation chapters):

1. Add pgvector to your docker-compose.yml Postgres service.
2. Write a migrations/003_rag_schema.sql file with the CREATE EXTENSION and the three tables + indexes above.
3. Create scripts/load_support_rag.py that:
   • Reads three small .md files from fixtures/support_docs/
   • Uses a 200-token chunker (simple sentence splitter is fine)
   • Calls a mock embedder (or sentence-transformers if you have it) that returns 1536-dim vectors
   • Calls upsert_chunks
4. Write scripts/query_rag.py that takes --merchant m01 --user u1 "where is my refund" and prints the top-3 chunks with similarity and source.
5. Run the whole thing with docker compose up and show that Bob (u3) cannot see the password-reset chunk while Alice can.

Expected output: Alice sees three refund or policy chunks with citation IDs, while Bob sees zero chunks for the restricted password-reset document. If Bob sees it, the solution failed the ACL overlap check. If Alice sees no rows, inspect the merchant filter, vector dimension, and register_vector(conn) call before blaming the LLM.

When scripts/query_rag.py returns the correct three paragraphs with citations and the ACL test passes for both agents, you have built the exact data layer that every later RAG, agent, and evaluation chapter depends on.

Common pitfalls (and the exact error messages you will see)

• Forgetting register_vector(conn) → can't adapt type 'numpy.ndarray'
• Using float[] column instead of vector(1536) → distance operator falls back to Python and is 1000× slower.
• Only indexing the embedding column → any query with WHERE merchant_id = ... becomes a sequential scan.
• Updating embeddings in a second transaction after the document commit → a crash leaves "ghost" chunks that have never been seen by the embedding model.
• Storing ACLs as a comma-separated string instead of a native text[] → GIN index doesn't help and @> becomes a slow LIKE.

Summary: the mental model you now own

• Use normalized tables for anything that must be correct on write (orders, billing, user identity).
• Use a denormalized document_chunks table with merchant_id, acl[], metadata jsonb, and vector for the read-heavy retrieval path.
• Protect the duplication with transactions in the loader.
• Index the filter columns first, then the vector column.
• Query with one statement that does vector distance + metadata filters + ACL overlap.

You can now look at any AI product and say: "Show me the schema for the retrieval layer" and immediately know whether it will scale, whether it will leak data between tenants, and whether a failed embedding job will corrupt answers.

What you can explain and build

• Draw the four-table hybrid schema on a whiteboard and defend the denormalization decisions.
• Write the exact psycopg2 + pgvector query that returns authorized, ranked chunks for a given merchant and user.
• Read an EXPLAIN ANALYZE and point to the three indexes that must exist.
• Implement a transactional loader that either commits a whole document plus its vectors or rolls everything back.
