Trees and Boosting

Support teams drown in tickets. A new ticket arrives with a subject line, a description, a customer tier, and a timestamp. Someone must decide within minutes whether this one will escalate to engineering or can be handled by the first-line team. The features are easy to compute: how many urgent words appear, whether the customer is VIP, how long the ticket has been open, and how many prior tickets that customer has filed.

A decision tree turns that pile of numbers into a short list of yes-or-no questions.^[1] Each question splits the tickets into cleaner groups until every leaf contains mostly one outcome: escalate or not. This chapter builds the idea from a single stump you can compute by hand, shows why plain trees break in production, and then introduces the two families of ensembles that fix the problem while still letting you explain every prediction.^[2]

You only need to be comfortable reading small tables and basic NumPy indexing. Everything else is built step by step with one running example of eight real-looking support tickets.

One table of eight support tickets

Here is the toy dataset we will use for every calculation and every code block. Each row is one ticket. The target is binary: will the ticket escalate to the engineering on-call rotation?

A human looking at the table quickly notices that high urgent_word_count and low ticket_age_hours often line up with escalations. A decision tree formalizes that intuition into reproducible splits.

Impurity: measuring how mixed a group is

Before we can ask "is this a good split?", we need a number that says how messy the labels are inside a group of tickets.

Two common impurity measures are used for classification trees.

Gini impurity for a node with two classes:

$$\text{Gini} = 1 - (p_0^2 + p_1^2)$$

where $p_0$ and $p_1$ are the proportions of the two classes inside the node.

Entropy (information) is:

$$\text{Entropy} = - p_0 \log_2 p_0 - p_1 \log_2 p_1$$

(with the convention that $0 \log 0 = 0$).

Both are zero when the node is pure (all tickets have the same label) and reach their maximum when the node is perfectly balanced.

Let's compute gini on the full root node of our eight tickets. Four escalated and four did not, so $p_1 = 0.5$.

$$\text{Gini}_\text{root} = 1 - (0.5^2 + 0.5^2) = 0.5$$

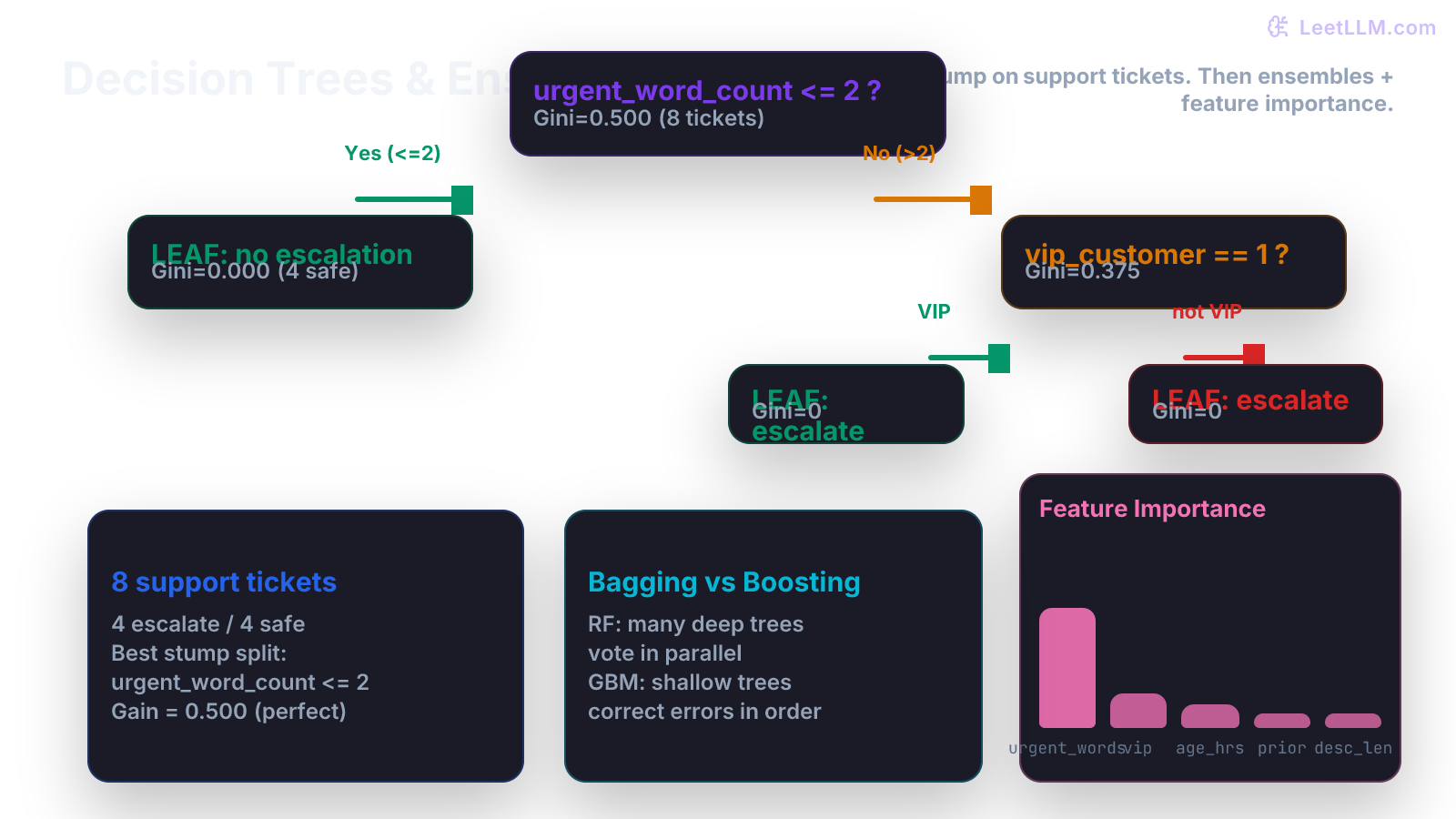

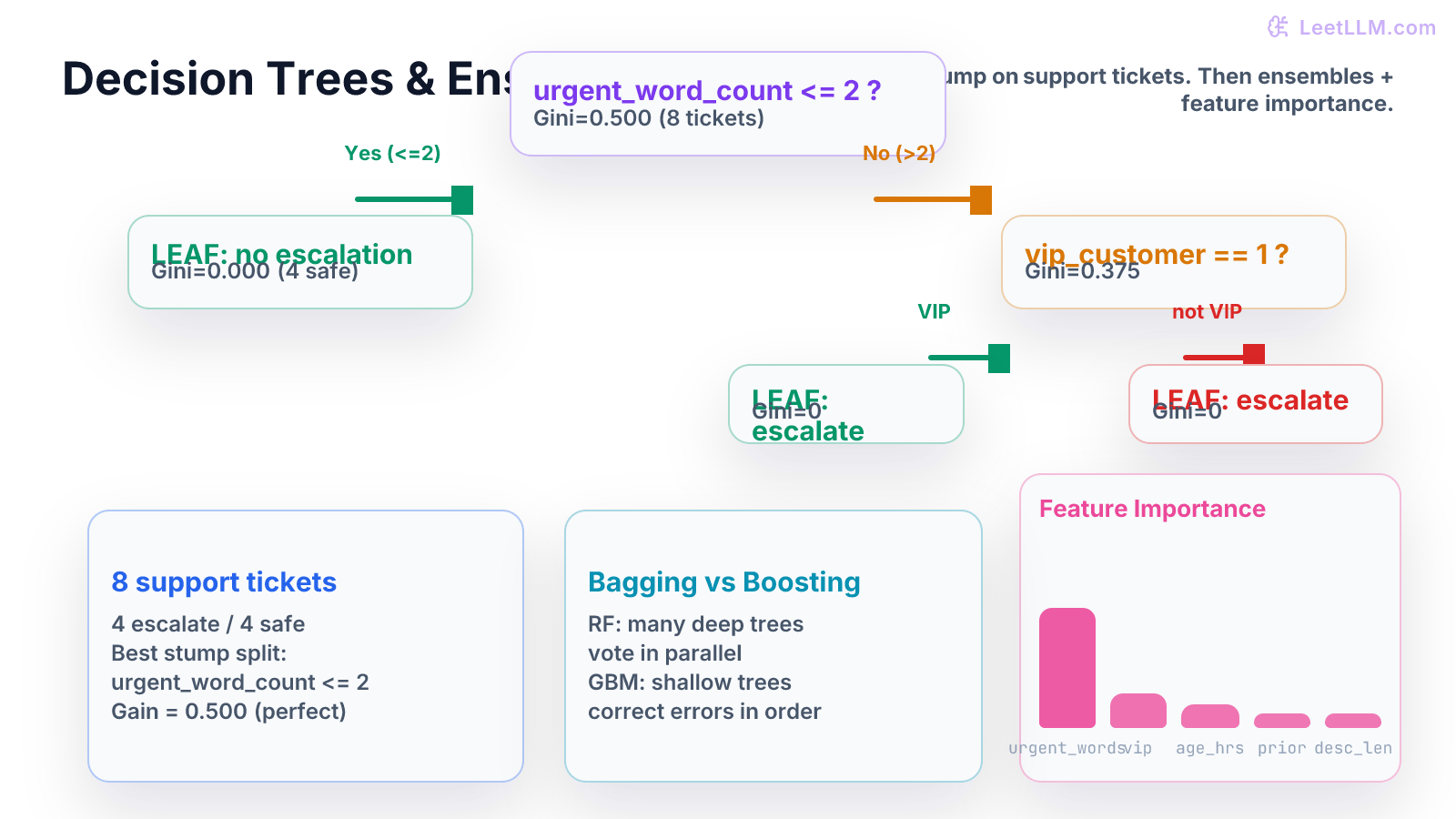

Now suppose we try the split "urgent_word_count > 2".

• Left child (urgent_word_count <= 2): tickets T02, T03, T05, T07. All four have will_escalate = 0. Gini = 0 (perfectly pure).
• Right child (urgent_word_count > 2): T01, T04, T06, T08. All four escalated. Gini = 0.
• The weighted child impurity is zero. The split reduced impurity from 0.5 all the way to zero. That is a perfect split on this tiny table.

In real data the children are rarely pure, so we measure the impurity decrease (also called information gain):

$$\Delta = \text{Gini}_\text{parent} - \left( \frac{n_\text{left}}{n} \cdot \text{Gini}_\text{left} + \frac{n_\text{right}}{n} \cdot \text{Gini}_\text{right} \right)$$

The algorithm tries every feature and every reasonable threshold, keeps the split that gives the largest $\Delta$, and recurses on the children.

From-scratch decision stump in NumPy

A decision stump is a tree with only one split. It is the smallest possible non-trivial tree and the perfect place to see the mechanics.

Below is a complete, runnable implementation that finds the best stump on our ticket table. It only looks at one feature at a time and only considers thresholds that actually appear in the data.

python
1import numpy as np
2
3# Toy support-ticket data (same table as above)
4X = np.array([
5    [5, 1, 2, 4, 180],   # T01
6    [0, 0, 18, 0, 45],   # T02
7    [2, 1, 6, 1, 95],    # T03
8    [6, 0, 1, 3, 210],   # T04
9    [1, 0, 24, 0, 60],   # T05
10    [4, 1, 3, 2, 140],   # T06
11    [0, 0, 48, 1, 30],   # T07
12    [3, 0, 9, 5, 120],   # T08
13], dtype=float)
14y = np.array([1, 0, 0, 1, 0, 1, 0, 1], dtype=int)
15feature_names = ["urgent_word_count", "vip_customer", "ticket_age_hours", "prior_tickets", "description_length"]
16
17def gini(labels: np.ndarray) -> float:
18    if len(labels) == 0:
19        return 0.0
20    p1 = np.mean(labels)
21    p0 = 1 - p1
22    return 1.0 - (p0 * p0 + p1 * p1)
23
24def best_stump(X: np.ndarray, y: np.ndarray, feature_names: list[str]):
25    n, m = X.shape
26    best_gain = -1.0
27    best_feature = None
28    best_threshold = None
29    best_left_idx = None
30    best_right_idx = None
31
32    parent_gini = gini(y)
33
34    for f in range(m):
35        thresholds = np.unique(X[:, f])
36        for t in thresholds:
37            left_mask = X[:, f] <= t
38            right_mask = ~left_mask
39            if left_mask.sum() == 0 or right_mask.sum() == 0:
40                continue
41            left_g = gini(y[left_mask])
42            right_g = gini(y[right_mask])
43            gain = parent_gini - (
44                (left_mask.sum() / n) * left_g + (right_mask.sum() / n) * right_g
45            )
46            if gain > best_gain:
47                best_gain = gain
48                best_feature = f
49                best_threshold = t
50                best_left_idx = np.where(left_mask)[0]
51                best_right_idx = np.where(right_mask)[0]
52
53    return {
54        "feature": feature_names[best_feature],
55        "threshold": best_threshold,
56        "gain": round(best_gain, 4),
57        "left_indices": best_left_idx,
58        "right_indices": best_right_idx,
59        "left_gini": round(gini(y[best_left_idx]), 4),
60        "right_gini": round(gini(y[best_right_idx]), 4),
61    }
62
63stump = best_stump(X, y, feature_names)
64print(stump)

Running the code prints:

text
1{'feature': 'urgent_word_count', 'threshold': 2.0, 'gain': 0.5, 'left_indices': array([1,2,4,6]), 'right_indices': array([0,3,5,7]), 'left_gini': 0.0, 'right_gini': 0.0}

Exactly the perfect split we calculated by hand. The stump simply asks "urgent_word_count <= 2?" and every ticket lands in a pure leaf.

Comparing with scikit-learn

Now we do the identical experiment with the library everyone actually ships.

python
1from sklearn.tree import DecisionTreeClassifier, export_text
2from sklearn.metrics import accuracy_score
3
4clf = DecisionTreeClassifier(max_depth=1, random_state=0)
5clf.fit(X, y)
6pred = clf.predict(X)
7print("Stump accuracy:", accuracy_score(y, pred))
8print(export_text(clf, feature_names=feature_names))

The printed tree matches our NumPy version: the first (and only) split is on urgent_word_count <= 2.5 (sklearn sometimes chooses a midpoint). Accuracy on the training tickets is 1.0, as expected for a perfect stump.^[3]

The library version also exposes feature_importances_ (all importance on the one feature that was used) and a predict_proba method that returns the empirical class frequency inside each leaf.

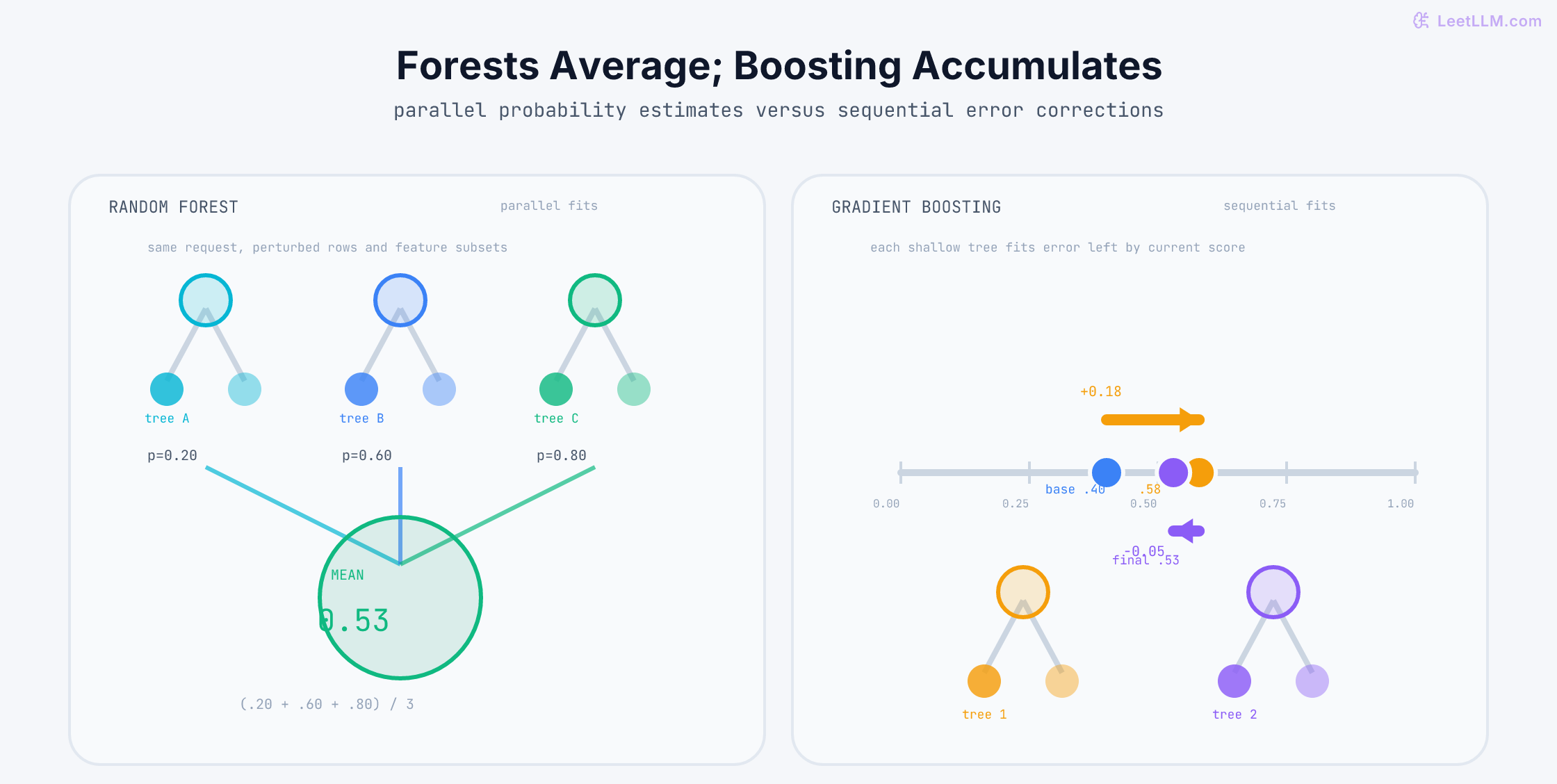

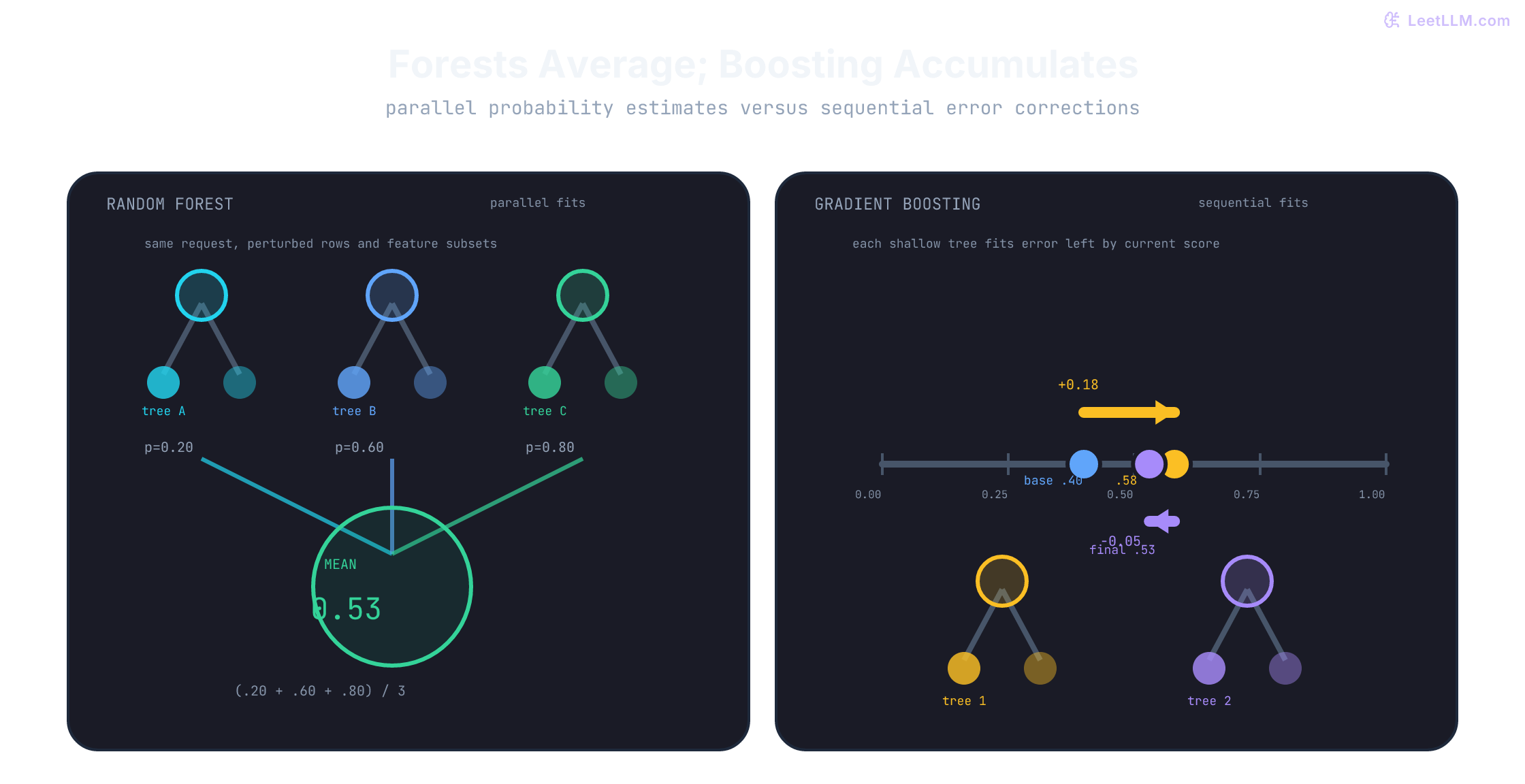

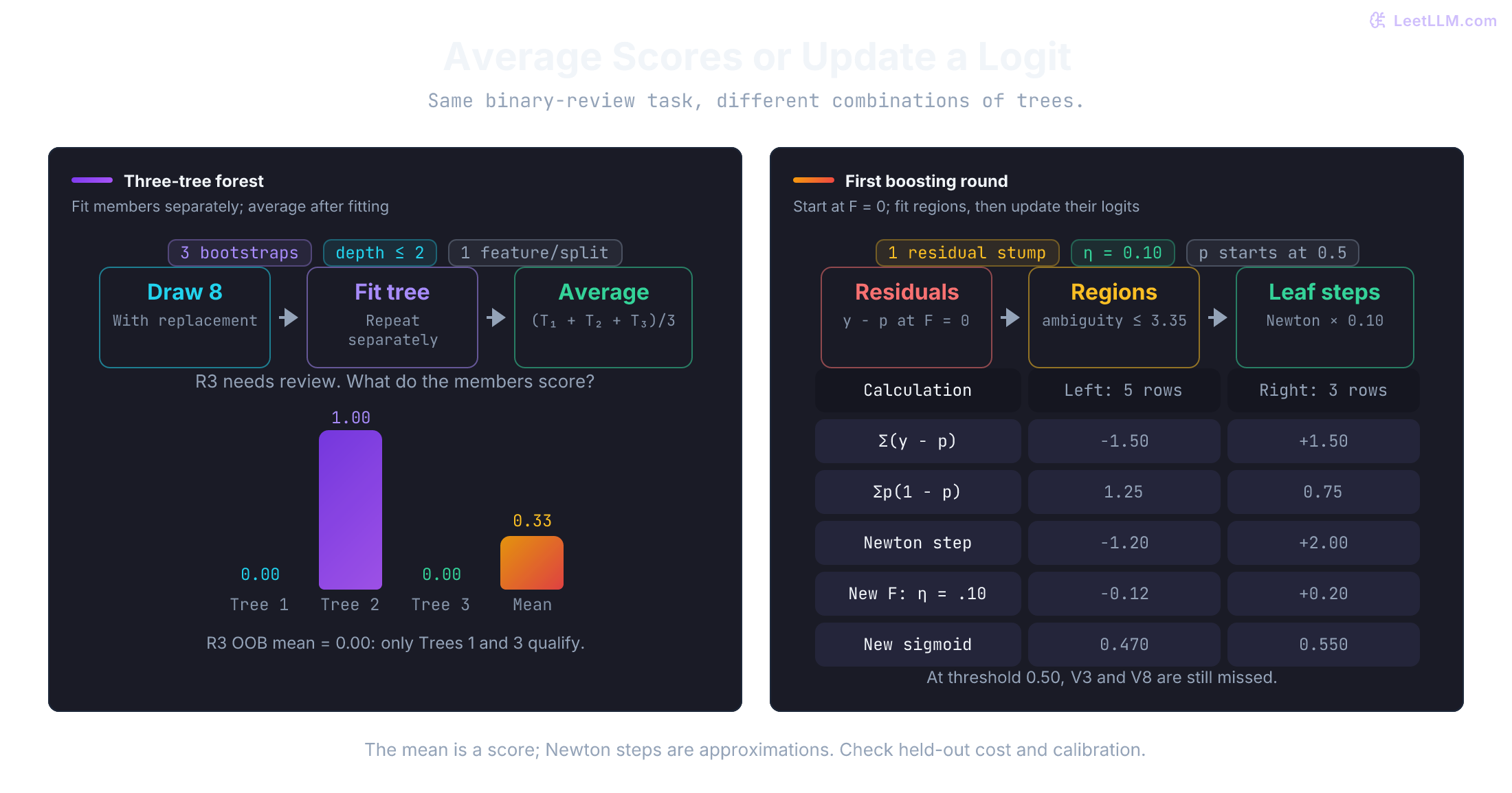

Why a full tree overfits and how ensembles help

If we remove the max_depth=1 limit and grow a deep tree, it can keep splitting until every leaf contains only one ticket. Training accuracy becomes 100 percent, but the tree has memorized the exact description length and prior-ticket count of every training example. A new ticket that says "urgent" three times instead of four will travel a completely different path and may be misclassified.

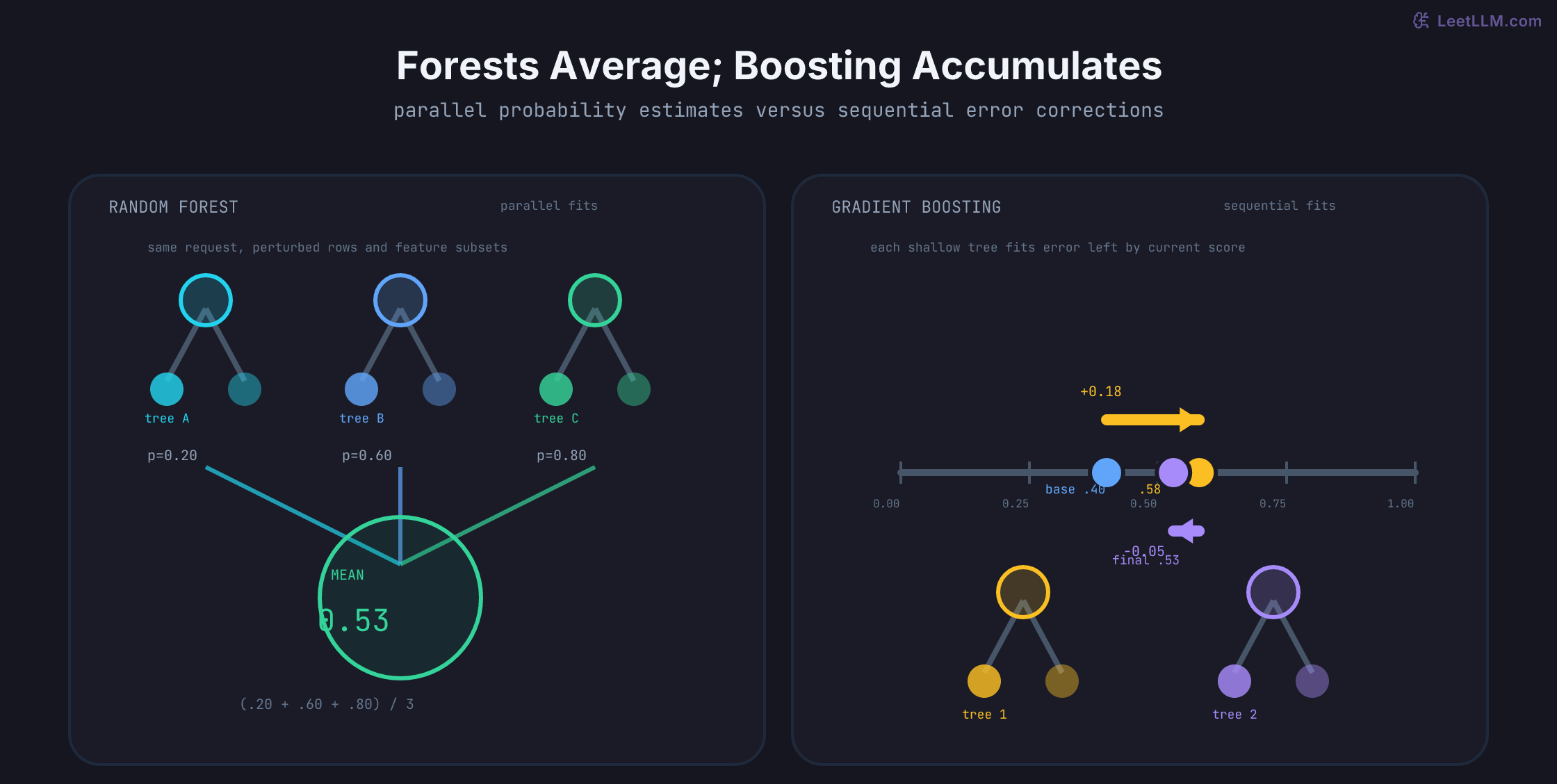

Two families of ensembles solve this without giving up the interpretability of trees.

• Bagging (bootstrap aggregating) builds many trees on different bootstrap samples of the data. Each tree sees only a random subset of features at every split (random subspace). The final prediction is a majority vote (classification) or average (regression). Because the trees are trained on different data and see different features, their errors are less correlated.

• Random forests are the most popular bagging method for trees.

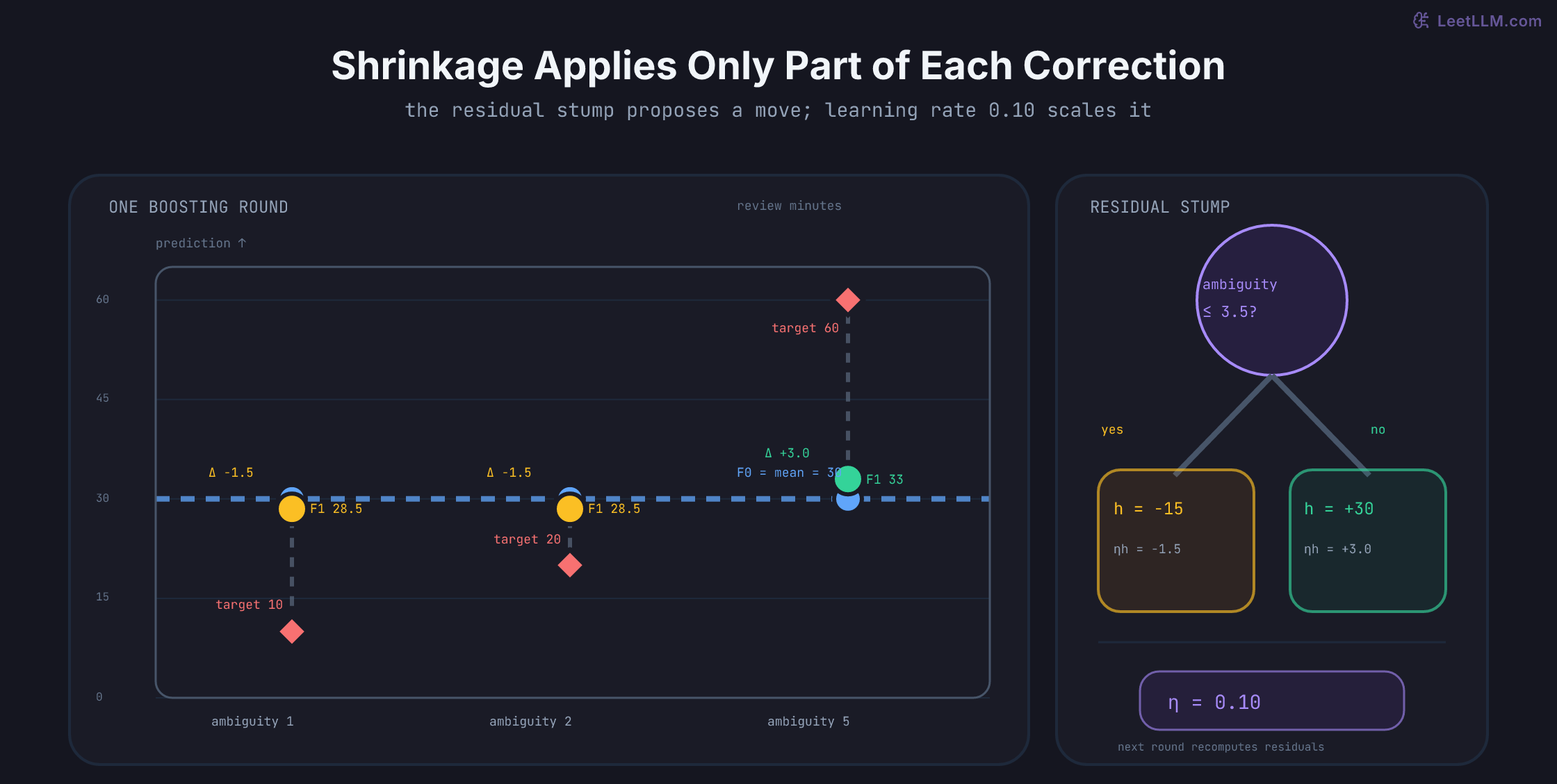

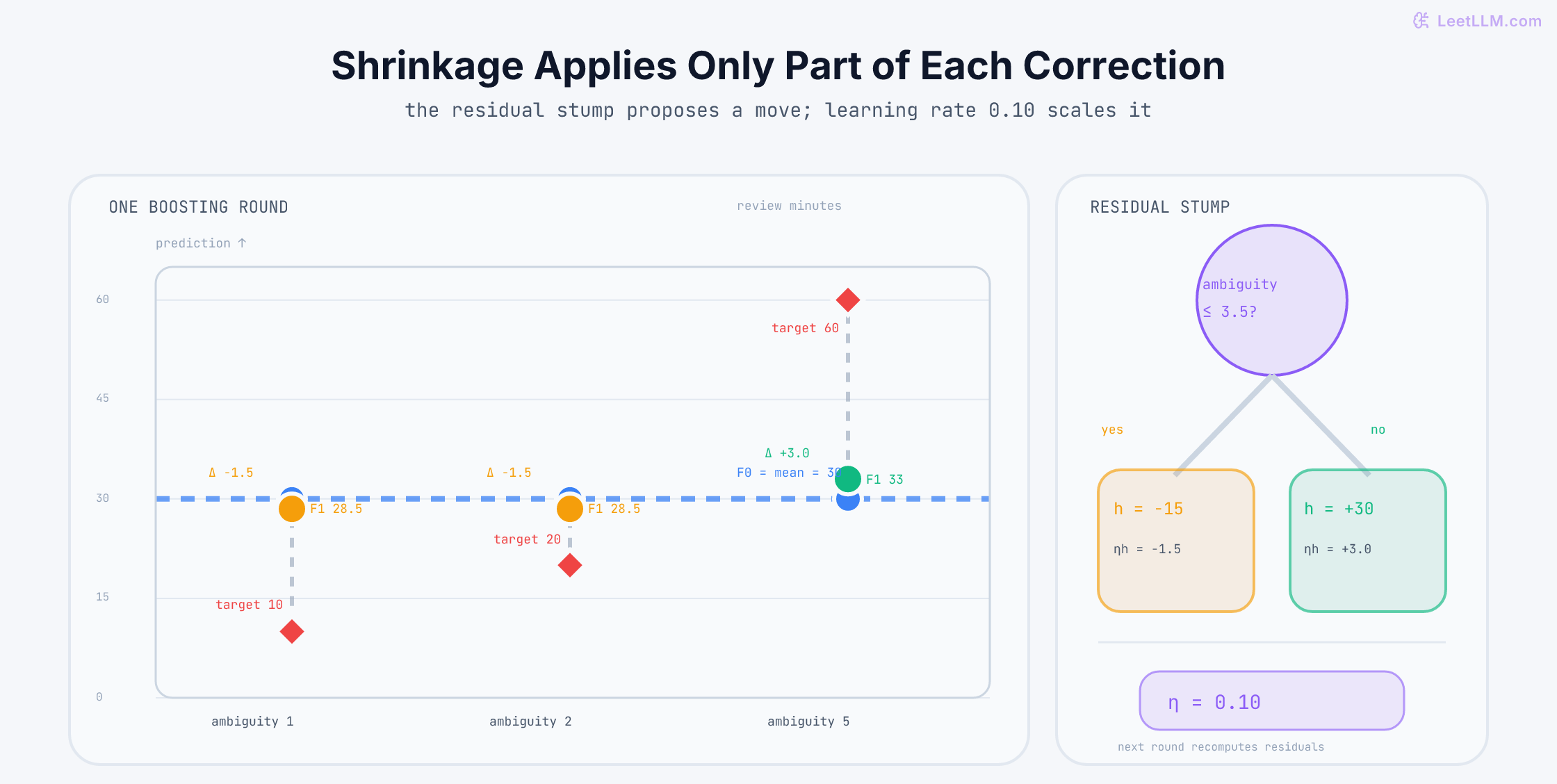

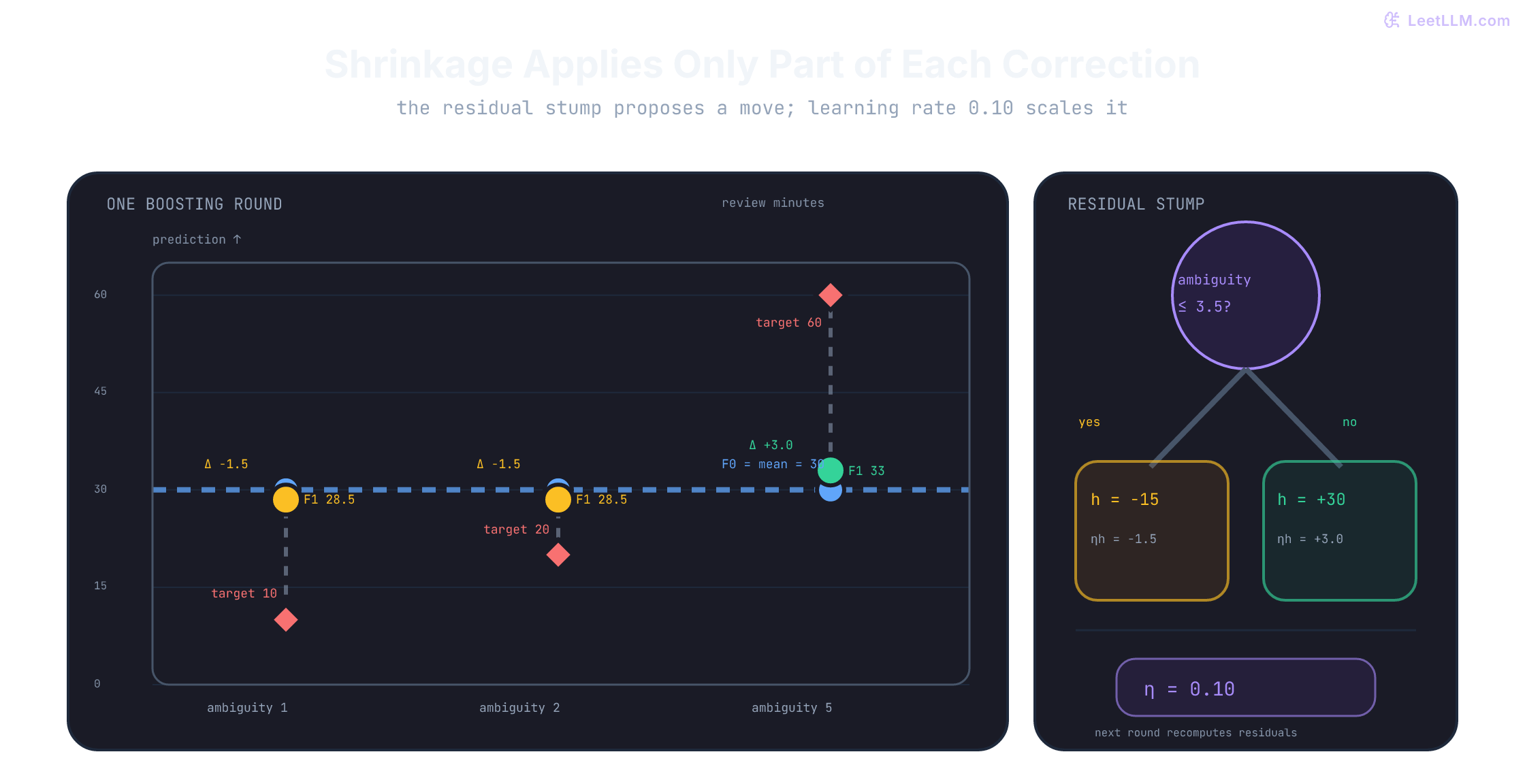

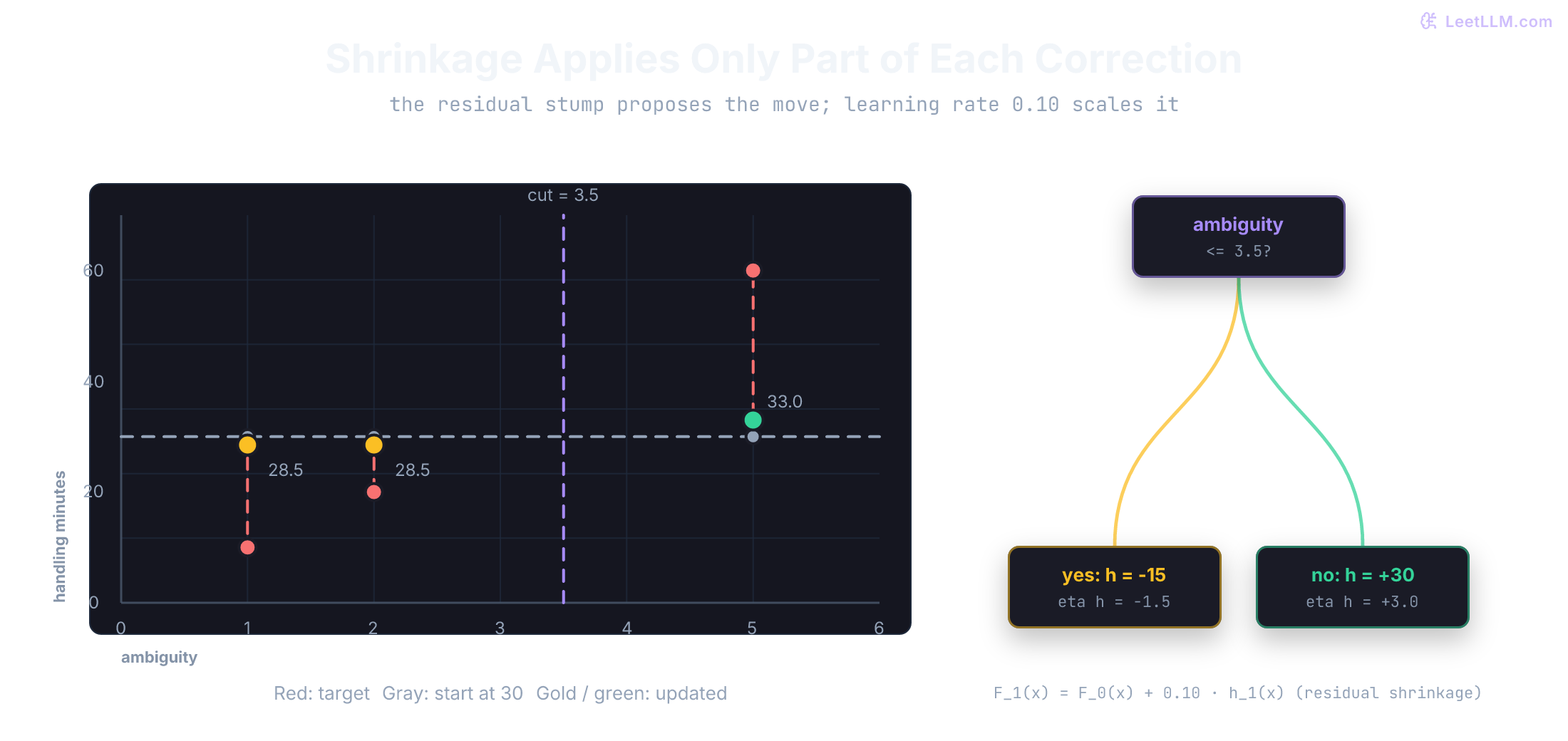

• Boosting grows trees sequentially. The first tree is fit to the original labels. The second tree is fit to the residuals (or to the negative gradient of the loss) of the first tree. Each new tree tries to correct the mistakes the current ensemble still makes. The final model is a weighted sum of all the small trees. Gradient boosting machines (GBM), XGBoost, LightGBM, and CatBoost all follow this pattern.

The key contrast:

Feature importance from tree ensembles

Once you have an ensemble, you can ask which features the model actually used.

The most common built-in measure is mean decrease in impurity (MDI). For every split that used a particular feature across all trees, add up the impurity decrease that split produced, then average across trees and normalize. The numbers sum to one and are easy to read.

On our toy data a random forest would report something close to:

• urgent_word_count: 0.62
• vip_customer: 0.18
• ticket_age_hours: 0.12
• prior_tickets: 0.05
• description_length: 0.03

These numbers tell the support-ops team: "If you can only instrument one signal, make sure you count urgent words reliably."

A more reliable (but slower) approach is permutation importance: shuffle one column at a time in the validation set and measure how much the ensemble's score drops. If shuffling urgent_word_count destroys performance while shuffling description_length barely changes anything, the model really depends on the urgent-word signal.

SHAP: explaining one ticket at a time

Feature importance tells you what the model cares about on average. When a manager asks "why did ticket T123 get escalated?", you need a per-prediction explanation.

SHAP (SHapley Additive exPlanations) gives exactly that. It treats every feature as a "player" in a cooperative game whose payoff is the model's output for that ticket. The SHAP value for a feature is the average marginal contribution of that feature across all possible coalitions of the other features.

For a tiny illustration, suppose our random forest predicts a 0.85 probability of escalation for a new VIP ticket with urgent_word_count = 4 and ticket_age_hours = 1. The base rate (average prediction across all training tickets) is 0.5. SHAP might attribute:

• +0.28 from urgent_word_count = 4 (high urgency pushes strongly toward escalate)
• +0.12 from vip_customer = 1 (VIPs escalate more often)
• -0.05 from ticket_age_hours = 1 (very new tickets are sometimes noise)
• smaller contributions from the remaining features

Sum of base rate plus all SHAP values equals the actual prediction 0.85. Every number has a clear sign and magnitude that a human can read.

The unified SHAP framework is the reference you should cite when you ship an explanation dashboard.^[4]

Practical production checklist for tree models on support data

• Always keep a time-ordered held-out set of the most recent tickets. Random splits leak because support patterns drift.
• Limit tree depth or use min_samples_leaf so that no leaf is smaller than 5-10 real tickets.
• Monitor the distribution of urgent_word_count and other key features in production. If the definition of "urgent" changes (new product launch, new slang), the model will silently degrade.
• Log both the raw prediction and the SHAP values for every escalated ticket. When a customer complains about an incorrect escalation, you can show the exact feature contributions that drove the decision.
• Re-train on a rolling window. Support language and customer behavior change; a model trained six months ago will start missing new escalation patterns.

Try it yourself

Use the exact NumPy stump code and the eight-row table.

If any of the checks above feels hand-wavy, print the intermediate masks, the gini numbers, or the actual SHAP table. Numbers on the page are the fastest way to build intuition.

What you built and where it leads

You can now:

1. Compute gini and entropy impurity on a small labeled table.
2. Write a from-scratch stump that enumerates thresholds and keeps the split with the largest impurity reduction.
3. Explain why a single deep tree fails on new support tickets and how bagging and boosting each repair the failure mode.
4. Read feature importance numbers and generate per-ticket SHAP explanations that a human support manager can act on.

The next critical skill is knowing whether any of these numbers are trustworthy, but before we drill into splits and leakage, we step into a different learning setup. Supervised models like trees learn from static labels. Reinforcement learning learns from rewards and the consequences of sequential actions. The ideas you will meet (states, policies, value functions, Bellman updates) are the direct foundation for reward models and policy optimization in RLHF, RLVR, and Constitutional AI.
